DriStud Joining Tape

Easy Tear Acrylic adhesive Polyester tape for General Use

Categories: ,

DriStud Joining Tape is a hand tearable joining tape, coated with a highly aggressive acrylic pressure sensitive adhesive (PSA) designed for use as a closure system and vapour seal on all interior and exterior sheathing materials.

DriStud Joining Tape can be used for new construction as well as repair on all vapour barrier materials and vapour permeable wall and roof underlays. It is the highest performing, highest value product on the market.

The DriStud Joining Tape is NOT be used as window flashing tape.
Please use DriStud Cool Window Flashing Tape to around the windows.

Documents

TitleDownload
DriSpace Warranty DownloadPreview
DriStud Joining Tape PTS DownloadPreview
DriStud Joining Tape- Product Technical Statement DownloadPreview
TCL Hunt Warranty for DriSpace Products DownloadPreview

Technical Properties

PropertyValue
Thickness (PSTC-133)0.087mm
Peel Adhesion to Stainless Steel (PSTC-101)15.9N/25mm
Peel Adhesion to Polyethylene (PSTC-101)5.6N/25mm
Peel Adhesion to Tyvek (PSTC-101)8.8N/25mm
Shear Adhesion (PSTC-107)˃24 hrs @ 15.2 kPa
Tensile Strength (PSTC-131)˃90.4N/25mm
Elongation (PSTC-131)130%
WVTR (ASTM E96)0.061 perms
Service Temperature-40 to 85 °C

Available Sizes

WIDTH (mm)LENGTH (m)Rolls per carton
485024

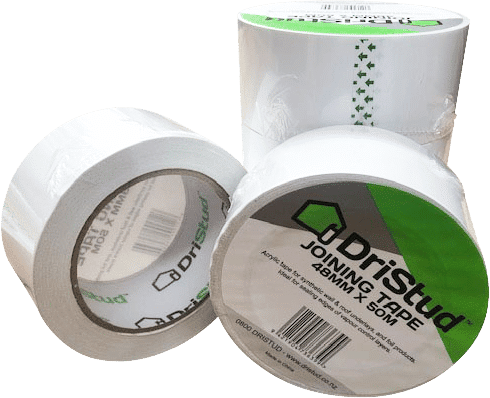

IMG_5223

Features & Benefits

  • High performance tape installs and performs well over a wide temperature range
  • Excellent vapour barrier tape on polymer film
  • Performs well as a joining tape on extruded foam products such as Styrofoam.
  • Applies to most of the wall and roof underlays.
  • We guarantee performance on all the DriStud wall and roof underlays and Tyvek.

Product construction

Oriented Polyester and Acrylic Adhesive
