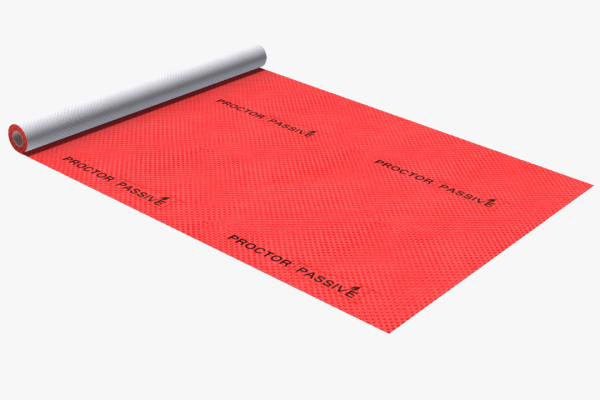

ProctorPassive Wraptite-SA

Self-Adhering Airtight and Vapour Permeable Membrane for Roof and Wall Applications

ProctorPassive Wraptite-SA is a self-adhering, water resistant, exceptionally high vapour permeable air barrier wall and roof underlay.

ProctorPassive Wraptite-SA consists of triple layer polyolefin textile with a proprietary acrylic moisture vapour permeable adhesive and release liner.

It combines the best properties of a vapour permeable membrane and a self adhesive water and air barrier in one innovative self-adhering product. Use of highly vapour permeable self-adhesive membranes decreases installation times when compared to mechanically fastened membrane systems and is suitable for residential, commercial and high rise buildings.

Continuous contact of the membrane to the sheathing by even distribution of stress over the entire bonded surface allows better resistance to wind pressures and elimination of stress point concentrations.

CodeMark Certified


Technical Properties

Weight292gsm +/- 10
Water Vapour ResistanceASTM E96 Procedure BPass 0.243 MN s/g
Air ResistanceBS ISO 5636-5:2003Pass
Water ResistanceAS/NZS 4201.4:1994Pass 100mm water head
FlammabilityAS 1530.2Pass Flammability Index 1
UV ExposureASTM G154Refer to the installation guide
Approved SealantTremco Dymonic 100, Bostik Seal ‘n’ Flex Facade, Bostik Seal ‘n’ Flex 1

Key Features & Advantages

  • CodeMark Certified
  • No primer required on most clean substrates down to -6°C
  • Lightweight and easy to install
  • Multiple substrate compatibility
  • Low Flammability (Flammability Index: 1)
  • Wide service temperature range, easily installed in all climates
  • Tear, rip and puncture resistant during and after construction, reducing install costs
  • Zero VOCs, and free of any chemicals on the Living Building Challenge Red List
  • NZBC compliance
  • Passive House Institute Certified Component phA
  • Self-adhering, water resistant, exceptionally high vapour permeable air barrier wall and roof underlay
  • Approved Sealants: Soudal Gorilla 940FC, Soudal BlackJack Bituminous Sealant, Soudal Gorilla Fix All Flexi, Tremco Dymonic 100

Mulitple Substrate Compatibility

  • Exterior Gypsum
  • Sheathing
  • Aluminium (painted or mill finish)
  • OSB
  • Most rigid insulation
  • Cast-in place concrete
  • Rigid vinyl
  • Pre-painted steel, Galvanized metal and Steel
  • Precast concrete and Concrete block
  • Plywood

Available Sizes

1500mm x 50.0m (75m2)
