ProctorPassive HC8 EnkaVent

'Hairy Chest' Drainage Spacer Mat

Category:

Overview

ProctorGeo HC8 EnkaVent Drainage Spacer Mat is a three dimensional shaped mesh of polyamide monofilaments, tangled and fused together.

Resources

TitleDownload
ProctorPassive HC8 Drainage Mat - Product Technical Statemen... DownloadPreview
TCL Hunt Warranty for DriSpace Products DownloadPreview
PropertyStandardValue
WeightEN 9864210g/m2 (±20)
Nominal Thickness8mm (±1)
Tensile Strength MDEN ISO 103191.6kN/m
Tensile Strength CDEN ISO 103191.1kN/m
Working Temperature-30oC ~ 80oC
Ignitability IndexAS1530.30
Spread of Flame IndexAS1530.30
Heat Evolved IndexAS1530.30
Smoke Developed IndexAS1530.30-1
Reaction to FireEN 1350-1 / EN-ISO 11925-2Euroclass E
Service LifeEN 13252 Annex B50 Years
UV Exposure2 weeks

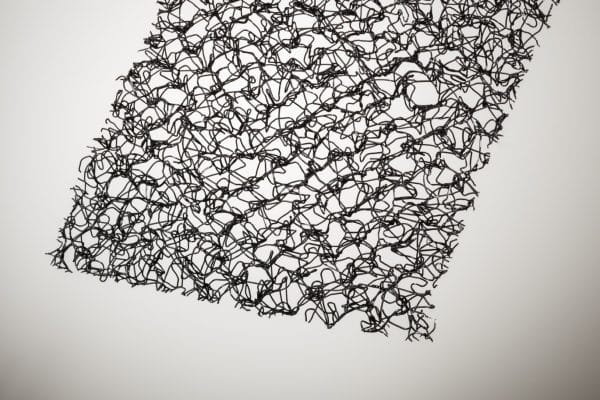

ProctorGeo HC8 EnkaVent Product Image 1

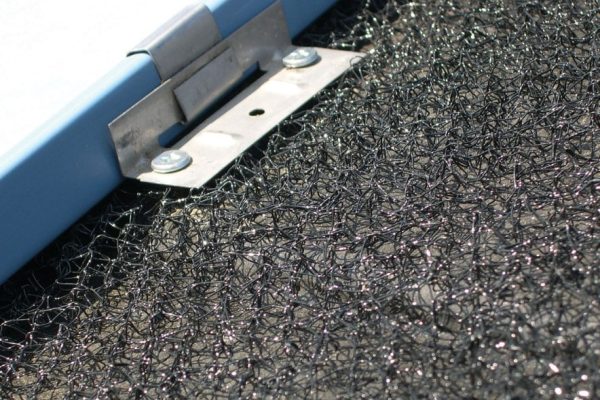

ProctorGeo HC8 EnkaVent Product Image 2

Available Sizes

ROLL SIZES
Roll Width1,020 mm
Roll Lengths75m
Coverage76.5m²

Key Features & Advantages

  • Provides a drainage pathway for condensate or moisture that may get under the roof sheet
  • Provides space for air movement between the roof deck/underlay and metal roof
  • Reduces corrosion risk – particular importance with zinc or galvanized steel roof sheets
  • 14dB reduction in impact noise on metal roofing
  • Allows for movement of the roof sheet under temperature fluctuations
  • Polyamide (PA6) filaments offer high dimensional stability in all climate conditions
  • Contributes to a reduction in temperature of the roof substrate from solar radiation
  • High air void (95%) for ultimate drainage capacity
  • Flexible and lightweight for ease of install
  • Easily cut with scissors or knife
  • AS1530.3 testing (0,0,0,0-1)
