RV10P – Ridge Vent

RV10P - For roof cladding with a trough depth of less than 34mm

Categories: ,

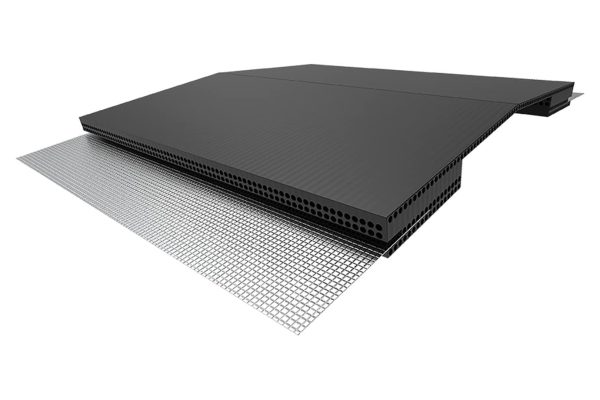

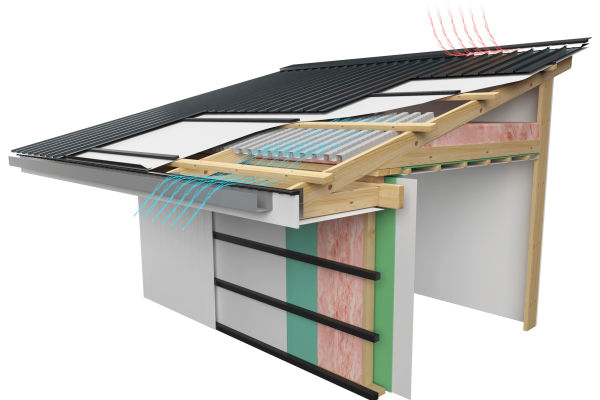

The VENT Ridge Vent is designed to release warm air from the roof void using the natural convection of rising warm air or by means of negative pressure created by wind blowing over the roof. The RV10P has an adhesive and flexible aluminium flashing which is designed to form to roofing profiles and prevent water ingress on any pitch roof. The RV10P form part of a passive ventilation system that works year round with no moving parts or energy consumption.

The RV10P is designed to be compatible with roof cladding profiles with a trough depth of <34mm.

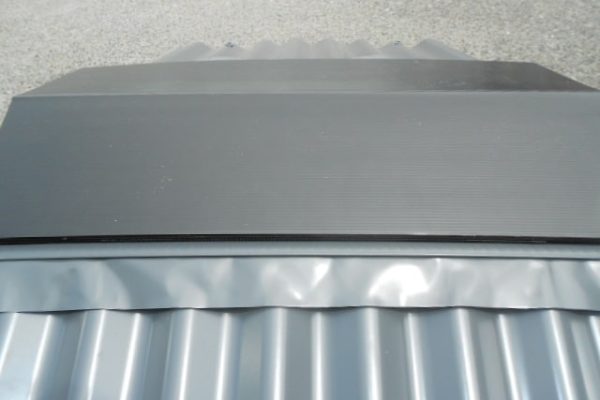

The aluminium soft edge should be notched or snipped as required to suit the roofing profile. Notching or snipping is always required on Deep trough or trapezoidal roofing profiles.

For roof cladding with a trough depth of 34mm to 48mm, use RV10DT.


  • BRANZ Appraised
  • Free Airflow of 8,000mm2 per linear metre
  • Releases hot air from roof voids and eliminates condensation
  • Recommended for cold roof pitch of over 30° and Skillion roof
  • For trough depths >34mm use an RV10DT (Deep Trough)
  • New Build or Renovation
  • Easy to install – Manufactured in 1200mm lengths for easy handling

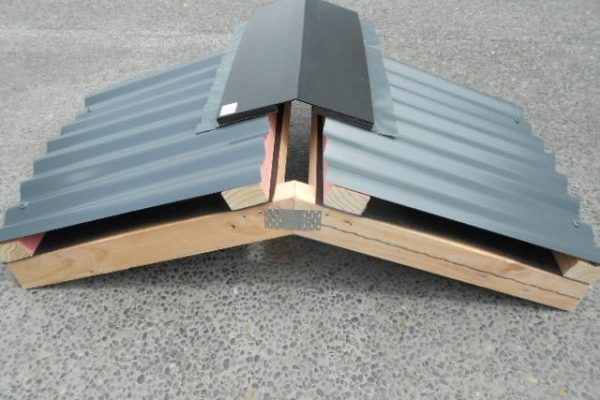

  • Not visible when covered with ridge flashing (Ridge Flashing not included)
  • Insect proof – Recommended 4mm vents to prevent ingress of nesting insects
  • Manufactured in recycled plastics
  • 30 year warranty


  • Between 17mm and 25mm contact with the trough is required, depending on the cladding profile.
  • Minimum working temperatures to dress down the soft edge flashing is 5°C. Primer or heat gun is recommended below 5°C.
  • Additional fixing screw lengths is required to accommodate 20mm thickness of the RV10P.


Technical Properties

Dimensions20mm thick x 1200mm long
Total LM per Carton6 pieces (7.2 LM) per Carton
Calculated Passive Air Flow8,000mm² per LM
For Trough DepthsLess than 34mm
Recommended Ridge Flashing size200mm to conceal soft edge of Ridge Vent
Vent size4mm
MaterialPolypropylene with Butyl Flashing tape
Warranty15 years


  • It comes in 1.2 metre long
  • 6 pieces (7.2 LM) per Carton
