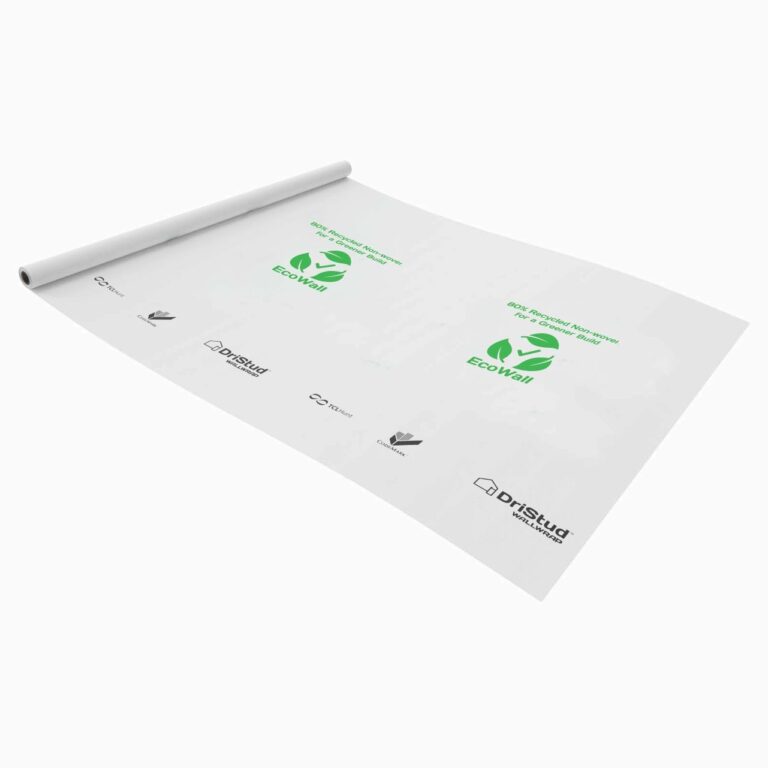

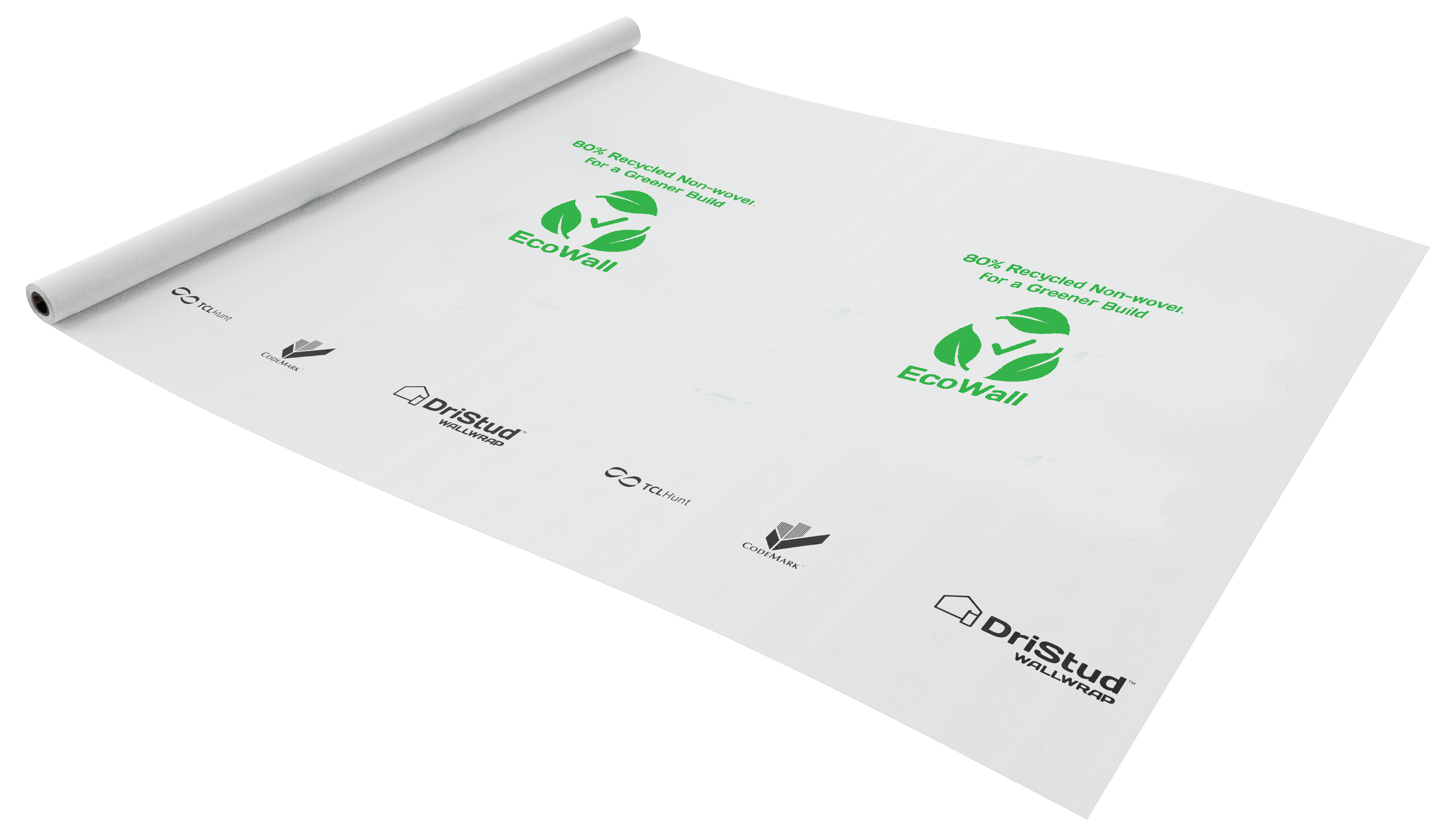

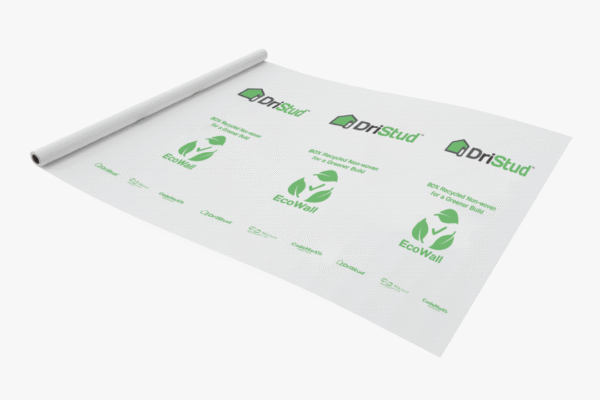

DriStud EcoWall Wrap

Fire Retardant, Breathable, Absorbent, Air barrier Non-Woven Wall Underlay made from 80% Recycled Materials

Build a sustainable future with DriSpace.
DriStud EcoWall Wrap is made using 80% Global Recycle Standard certified recycled non woven materials.

DriStud EcoWall Wrap is engineered from resilient non-woven fabric and is a commercial grade building wrap. DriStud EcoWall Wrap has a high resistance to moisture and is perfectly suited for Residential and Commercial Buildings with high-permeable moisture transfer requirements.

DriStud EcoWall Wrap is also an air barrier that allows for high moisture vapour transfer creating a healthier and more energy-efficient structure for projects in wet or cold climates and/or for projects requiring high vapour permeability.

Documents

Technical Properties

Property	Standard	Value
Weight		116 ±5 g/m2
UV Exposure		Up to 90 days
Water Vapour Resistance	ASTM E96 Procedure B	0.232 MNs/g; Pass
Absorbancy	AS/NZS 4201: Part 6	Requirement ≥100 g/m²; 196 g/m² - Pass
Air Resistance	BS ISO 5636-5:2003	Requirement ≥0.1 MN s/m³; Pass
Air Barrier		Yes
Resistance to water penetration	AS/NZS 4201.4:1994	Requirement ≥100mm H₂O; Pass
Tensile Strength	ASTM D882	MD: > 2 KN/m, CD: > 1 KN/m
Edge Tear Strength	TAPPI T470	MD: > 100 N, CD: > 55 N

Available Sizes

WIDTH (mm)	LENGTH (m)	AREA (m2)
2740	36.5	100
2740	9.2	25
1370	73	100
1370	18.5	25

Key Features
Custom Print

Key Features

CodeMark™ Certified
Fire Retardant
UV Exposure: 90 days
Vapour Permeable & Absorbent
Air barrier (can be used on gable ends)
Can be direct fixed with absorbent and non-absorbent wall claddings
Can be direct fixed to timber and steel-framing
Can be installed over an 18mm minimum drained cavity
Translucent for ease of Installation
Suitable for “Very High” Wind Zones when used as standalone flexible underlay
Suitable for “Extra High” Wind Zones when used as a flexible underlay over a rigid wall underlay
