ProctorPassive Air Barrier Tape (AB)

Single sided air barrier tape

Categories: ,

Product Overview

ProctorPassive AB Tape is a single sided pliable polyethylene tape made with an aggressive, moisture resistant polyacrylate pressure sensitive adhesive with superior ageing resistance.

To be used with ProctorPassive SmartVap and ProctorPassive GeoVap120

Resources - Downloads

Technical Properties

PropertiesValue

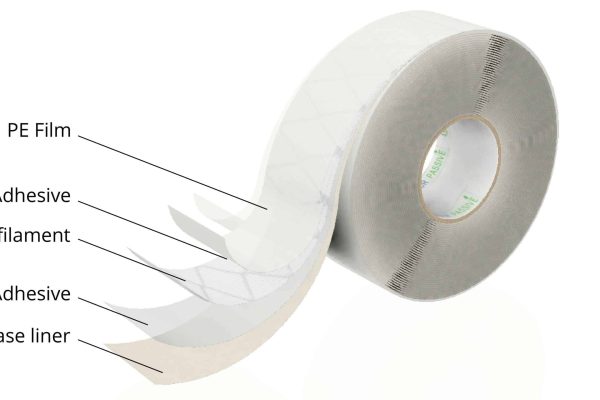

Adhesive CarrierUV-stabilized polyethylene film with PET filament reinforcement
Adhesive TypeHigh tack polyacrylate adhesive
Total Thickness0.34mm
LinerSilicone Paper
Peel Adhesion≥ 30 N/25mm
Tensile Strength≥ 50 N/25 mm
Temperature Range-40 °C to +80 °C
Application Temp.+5 °C to +40 °C
UV ExposureMaximum 2 months
Vapour Resistance225MNs/g
Shelf Life1 year in original packing stored in a dry location protected from UV between +5 °C to +25 °C

Benefits

  • Pliable
  • Self-Adhesive
  • Stretchable with scrim to prevent over expansion
  • Moisture resistance
  • Low emission of VOC
  • Excellent ageing resistance
  • Multiple substrate compatibility
  • Air and vapour tight
  • Available with 50:50 split release liner (75mm wide)

Available Sizes



Split ReleaseStandard
Roll Dimensions75mm x 25mm60mm x 25mm
Packaging8 rolls per carton10 rolls per carton
